Water Filling Machine
Automatic Packaged Mineral Spring Water Bottle Filling Machine
This machine is dedicated to producing PET bottled drinking water, including pure water, mineral water and natural water. Equipped with hanging-neck technology, it ensures stable and high-speed bottle transmission. Integrating bottle rinsing, filling and capping in one unit, the equipment is sanitary and highly efficient. Its premium filling valve also guarantees accurate liquid filling levels.
High‑precision filling
Consistent filling volume
High filling efficiency
Strict hygiene standards
No‑leak filling
High production capacity
Low failure rate
Easy maintenance
Energy‑saving operation
Minimal product waste
Integrated monoblock design
Wide bottle compatibility
Customizable capacity
Fully automatic operation
This machine is dedicated to producing PET bottled drinking water, including pure water, mineral water and natural water. Equipped with hanging-neck technology, it ensures stable and high-speed bottle transmission. Integrating bottle rinsing, filling and capping in one unit, the equipment is sanitary and highly efficient. Its premium filling valve also guarantees accurate liquid filling levels.
It adopts technology of air conveyor direct connect with bottle infeed starwheel to instead of screw and conveyor. it is easier and more simple to change over bottle size. Adopt neck handling technology to convey bottles. there is no need to adjust the height of equipment and only need to change some spare parts.

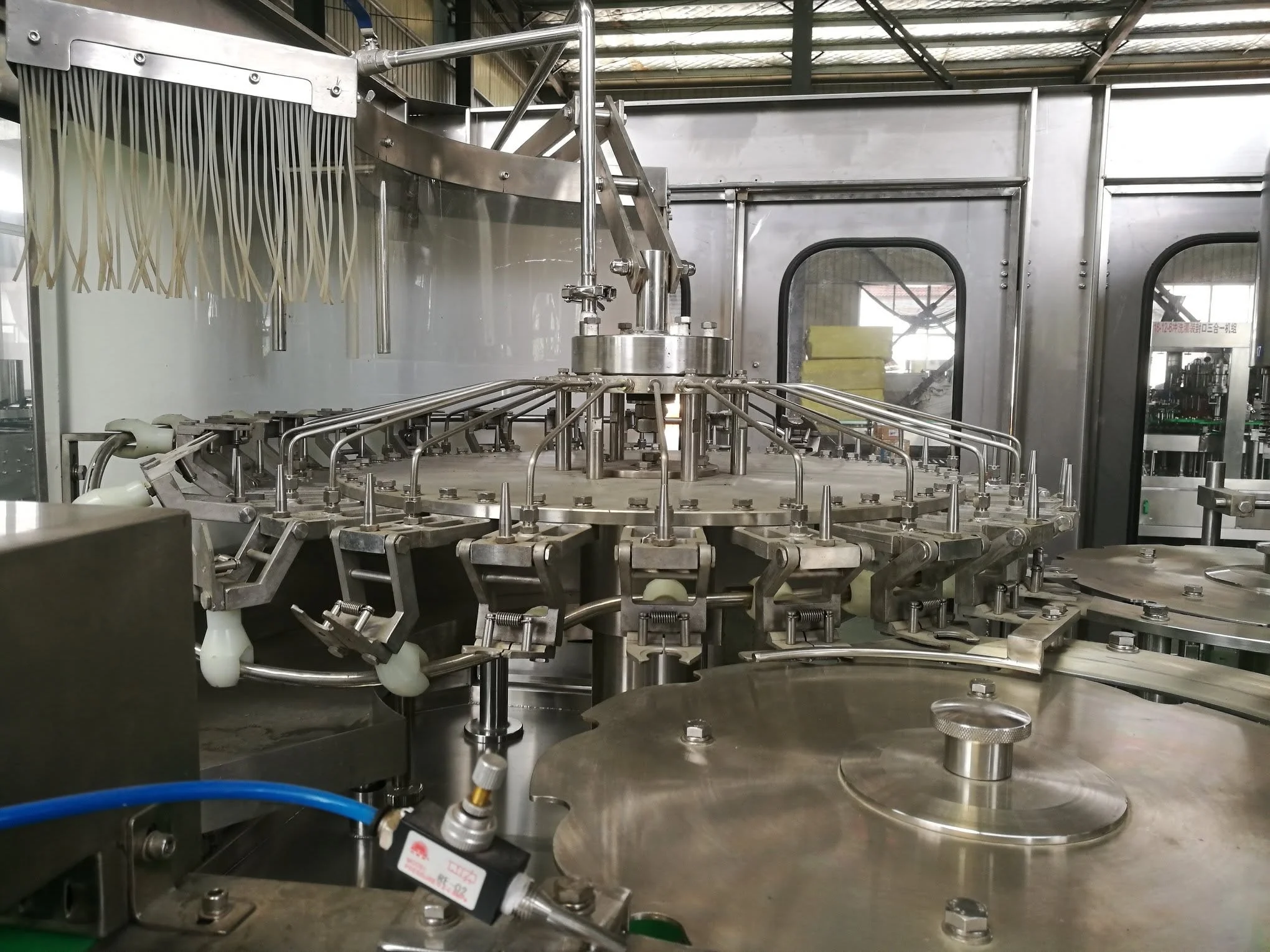

By 3-in-1 monoblock, the bottle does through rinse, filling, capping with little abrasion, and transferring is stable bottle changing is easier, Specially designed stainless steel bottle gripper dose not contact the thread parts of the bottle neck, avoiding the second contamination, High speed and mass flow filling valve ensures the high filling speed and exact fluid level parts contacting liquid are all made of excellent stainless steel of good grade plastic. the electric system is from international brand and achieves the national food hygienic standard. the bottle-out starwheel is helical structure, while changing over bottle size. It is no need to adjust bottle-out conveyor height.
Core Advantage
| Integrated Rinsing-Filling-Capping Design | This machine adopts 3-in-1 monoblock structure for bottle rinsing, water filling and cap sealing. The whole process is automated and centralized, reducing intermediate pollution links and improving overall production efficiency. It is specially designed for mineral spring water pure filling production. |
|---|---|
| High Filling Accuracy & Stable Output | Equipped with gravity flow filling system, it realizes constant liquid level filling with stable water volume, no overflow and no liquid shortage. Suitable for high-precision fixed-volume filling of mineral water, effectively avoiding material waste and inconsistent finished bottle capacity. |
| Full Sanitary & Clean Production | Key contact parts are made of food-grade 304 stainless steel. The filling chamber is fully enclosed with dust-proof and bacteriostatic design. It effectively prevents external dust and secondary pollution, meeting food beverage hygiene and mineral water production standards. |
| Wide Compatibility & Flexible Adjustment | The machine can adapt to different sizes of PET plastic bottles and mineral water bottle specifications. Bottle height, filling volume and running speed can be adjusted freely, supporting flexible production of multiple bottle types and multiple capacities |
| High Automation & Labor Saving | Automatic bottle feeding, rinsing, filling, capping and discharging. Equipped with intelligent PLC control and touch screen operation. Simple operation, fewer workers required, effectively reducing production labor costs. |
| Low Failure Rate & Easy Maintenance | Adopts well-known brand electrical components and stable mechanical transmission structure. The equipment runs smoothly with low noise and long continuous working time. Modular structure design makes daily inspection and maintenance more convenient. |
| Effective Anti-leakage & No Waste | Adopts anti-drip filling nozzles and precise valve control. It stops water instantly when stopping filling, effectively solving dripping and leaking problems, keeping the machine surface clean and saving water resources. |
| Customized Production Capacity | Multiple models are available from small capacity to high capacity, including 2000BPH, 4000BPH, 6000BPH, 10000BPH and above. Customized full automatic production lines are available according to customer factory layout and budget. |
Capacity Models
| Model | CGF14-12-5 | CGF16-16-5 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | CGF50-50-15 |
|---|---|---|---|---|---|---|---|
| Capacity(BPH) for 500ml | 2000-3500 | 3500-5000 | 5000-7000 | 7000-12000 | 12000-15000 | 15000-20000 | 20000-24000 |
| Bottle shape | Circular or Square | Circular or Square | Circular or Square | Circular or Square | Circular or Square | Circular or Square | Circular or Square |
| Bottle diameter(mm) | Φ50-Φ95 | Φ50-Φ95 | Φ50-Φ95 | Φ50-Φ95 | Φ50-Φ95 | Φ50-Φ95 | Φ50-Φ95 |
| Bottle height(mm) | 150-310 | 150-310 | 150-310 | 150-310 | 150-310 | 150-310 | 150-310 |
| Power(kw) | 3 | 3.5 | 4 | 5.5 | 7.5 | 11 | 15 |
| Washing medium | Aseptic water | Aseptic water | Aseptic water | Aseptic water | Aseptic water | Aseptic water | Aseptic water |
| Dimension(mm) | 2050*1550*2200 | 2400*1750*2200 | 2550*1850*2200 | 3000*2150*2200 | 4200*2700*2400 | 4700*3200*2400 | 6500*3350*2400 |
| Weight(kg) | 2200 | 2800 | 3000 | 4500 | 6000 | 9000 | 15000 |
Scope of Supply
- ✓Main Machine Body--Complete 3-in-1 monoblock rinsing, filling and capping integrated machine. Including main frame, protective cover, transmission system, rotating turntable and all internal mechanical matching structures. The whole body is stable, anti-vibration and suitable for long-term continuous industrial operation.
- ✓Bottle Rinsing System--Full set of bottle rinsing mechanism, high-pressure rinsing nozzles, water distribution pipeline and rotary spraying structure. Realize 360° no-dead-angle internal and external bottle cleaning. Equipped with water recycling and filtering structure to ensure clean rinsing water and meet sanitary production standards.
- ✓Gravity Filling System--Full set of gravity constant-level filling components, food-grade filling nozzles, anti-drip control valves, liquid buffer tank and stable water supply pipeline. Ensure equal liquid level for each bottle, no overflow, no dripping and consistent filling volume. Suitable for mineral spring water non-foam precise filling.
- ✓Capping & Sealing System--Automatic cap sorting, cap feeding and magnetic twisting capping device. Equipped with anti-skid capping head and constant-torque control structure. Realize automatic cap picking, positioning and sealing, ensuring tight and qualified bottle mouth sealing without damage to bottle caps.
- ✓Electrical Control System--Complete PLC intelligent control cabinet, touch screen operation panel, frequency converter, electric elements, sensors and full set of control circuits. Support automatic start-stop, speed regulation, fault alarm and interlock protection. Realize full automatic linkage operation of the whole machine.
- ✓Water & Gas Pipeline System--Complete water inlet and outlet pipelines, filtering connectors, pneumatic control components, air pipes and matching valves. All water-contact pipelines adopt food-grade stainless steel with smooth welding, no dead corners and no secondary pollution
- ✓Safety & Protection Device--Full machine safety protective cover, emergency stop button, overload protection, bottle missing protection, cap missing protection and automatic shutdown alarm function. Ensure safe and stable operation and effectively reduce failure rate
- ✓Standard Spare Parts & Accessories--Conventional wearing parts, spare nozzles, sealing rings, filter elements and installation accessories. Equipped with complete installation tools to ensure daily replacement and maintenance
- ✓Technical Documents--operation manual, maintenance manual, electrical schematic diagram, equipment layout drawing, spare parts list and factory test report
- ✓Service Scope--Factory pre-delivery inspection, overseas installation guidance, commissioning, worker operation training and after-sales technical support
Site Requirements
Confirm these before delivery so installation is not delayed on arrival.
- Factory Space & LayoutIndoor installation, maximum equipment length/width limitation
- Power supplyVoltage, frequency, phases and available capacity confirmed in advance
- Working EnvironmentNormal temperature indoor production
Enquiry
Send Your Requirements
The more of these we have up front, the more accurate the first quotation will be.
- Required Production Capacity(BPH) — 2000BPH、4000BPH、6000BPH、8000BPH、10000BPH+
- Bottle Material,Volume — 330ml, 500ml, 1L, 1.5L, 2L
- Bottle Shape & Height — Regular round bottle / Custom shaped bottle; Provide bottle drawing or sample
- Filling Mode — Gravity constant-level filling (standard for still water)
- Control System — PLC + Touch screen full automatic control / Semi-automatic control
- Material Standard — Food grade SS304 / SS316L
- Only single filling machine / Full turnkey production line —
- Cap Type — Plastic screw cap (standard) / Custom cap structure
- Certificate Required — CE / ISO / Other local certification
- Custom Special Demand — Custom speed, special anti-corrosion, safety standard, spare parts quantity
